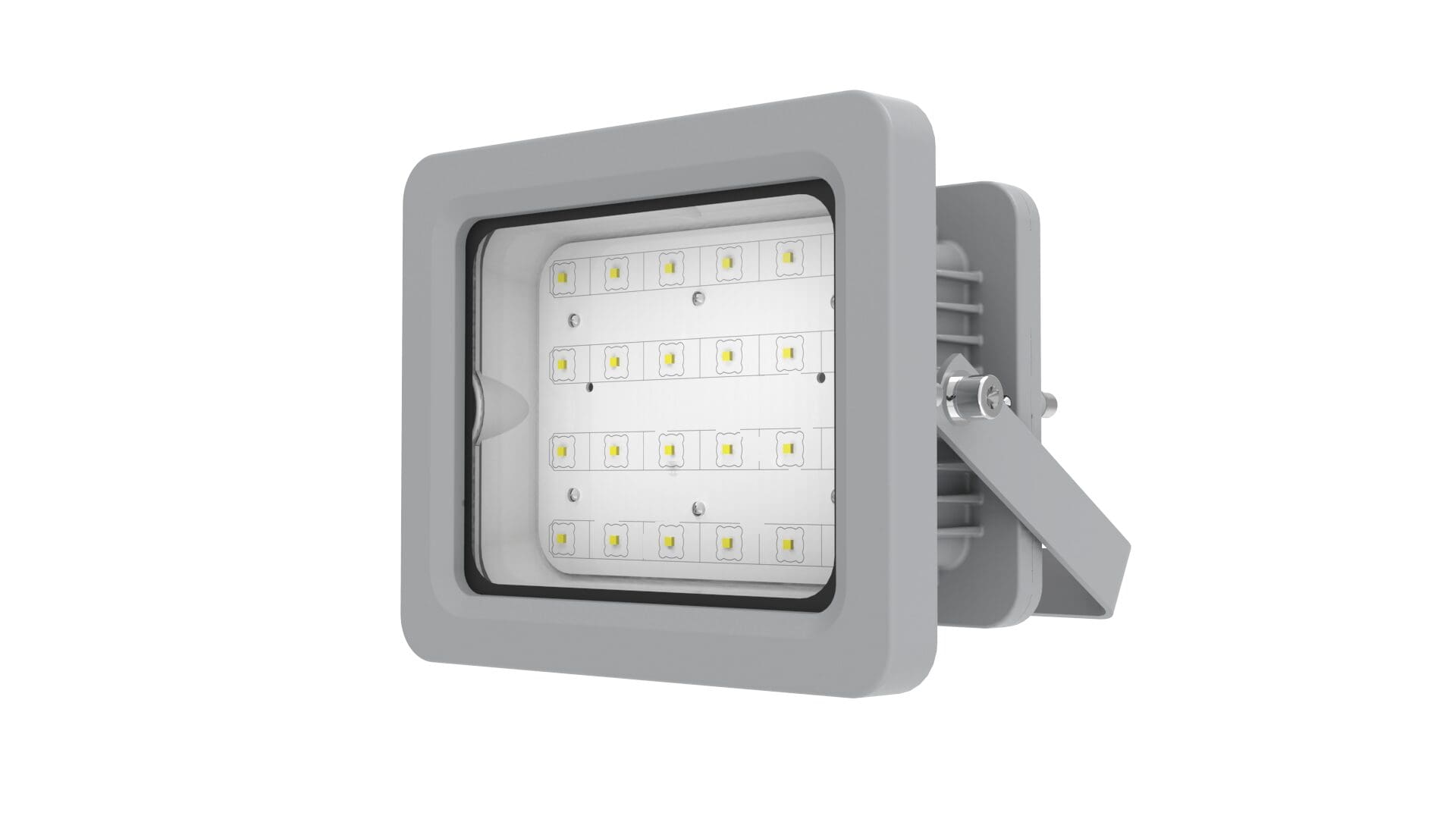

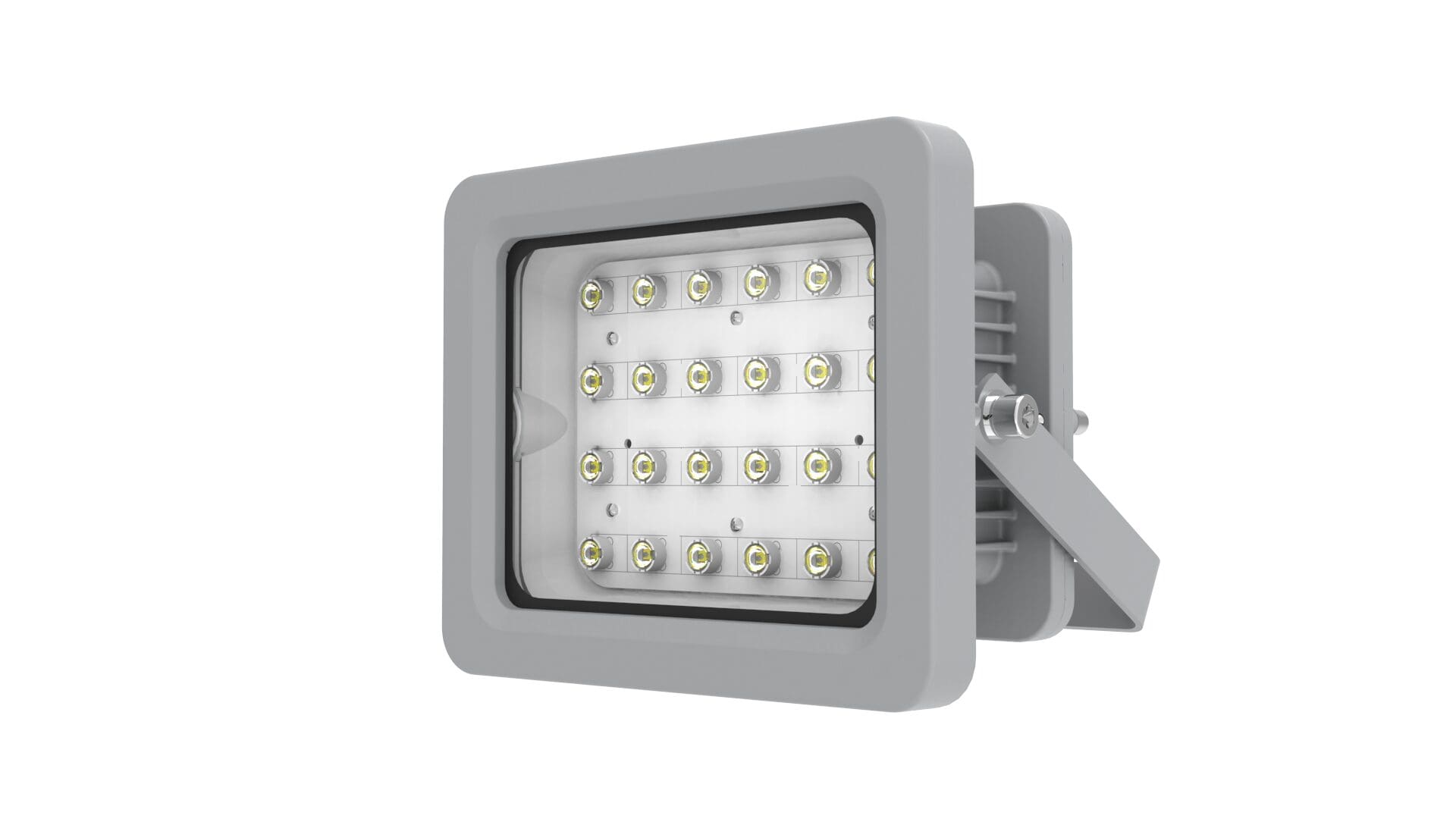

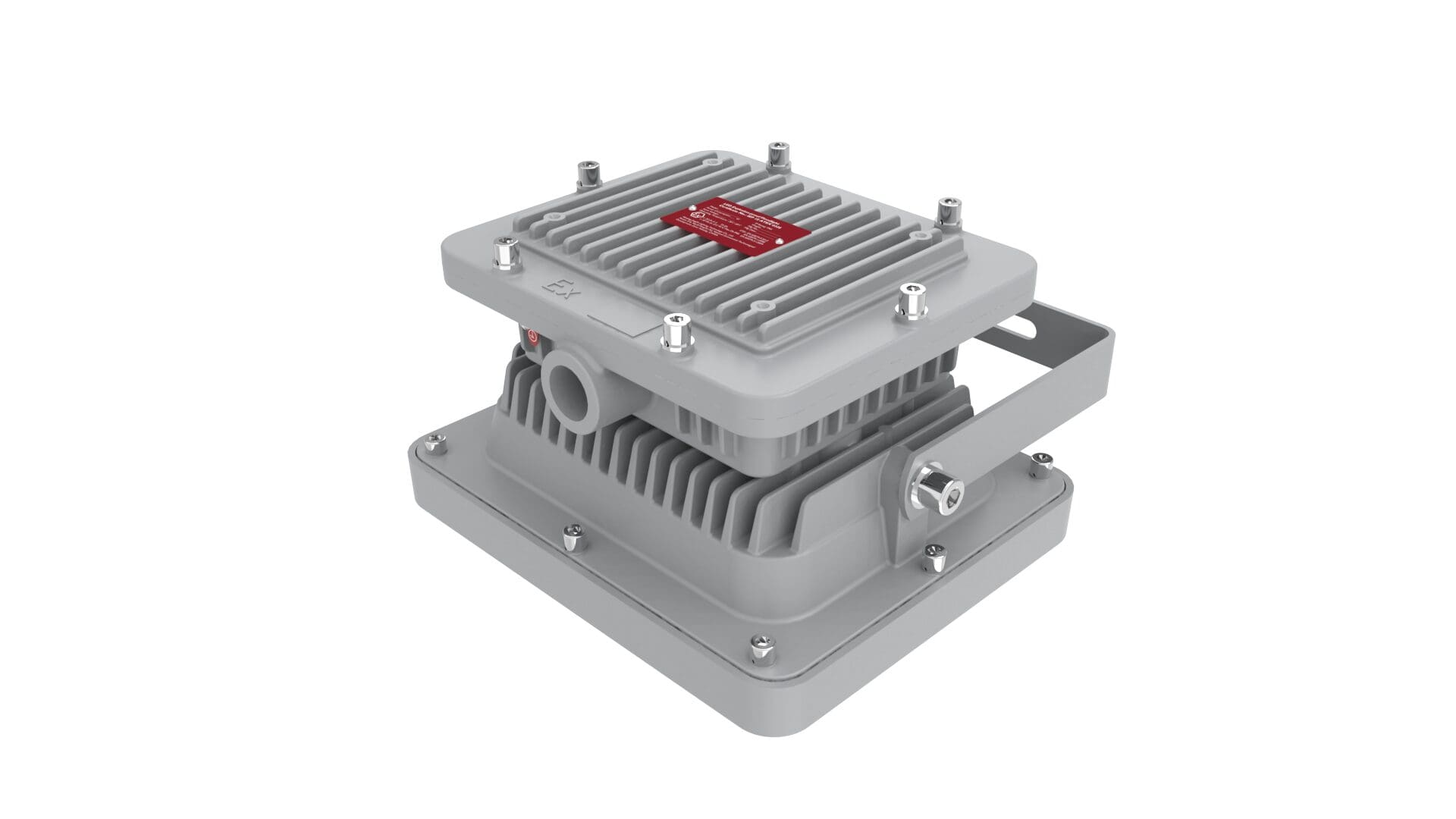

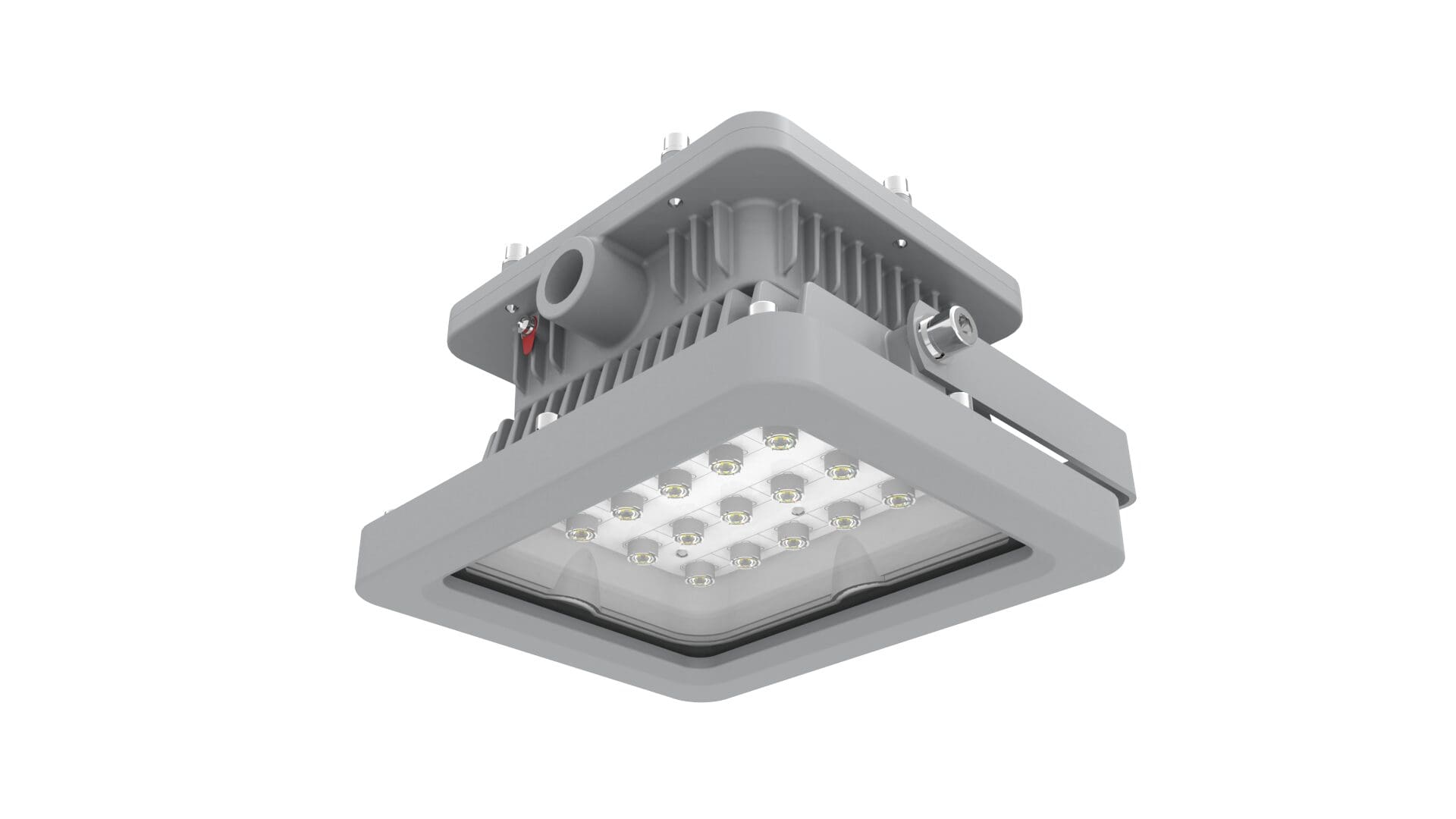

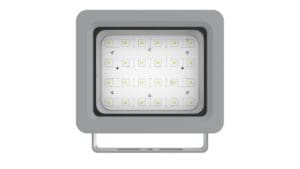

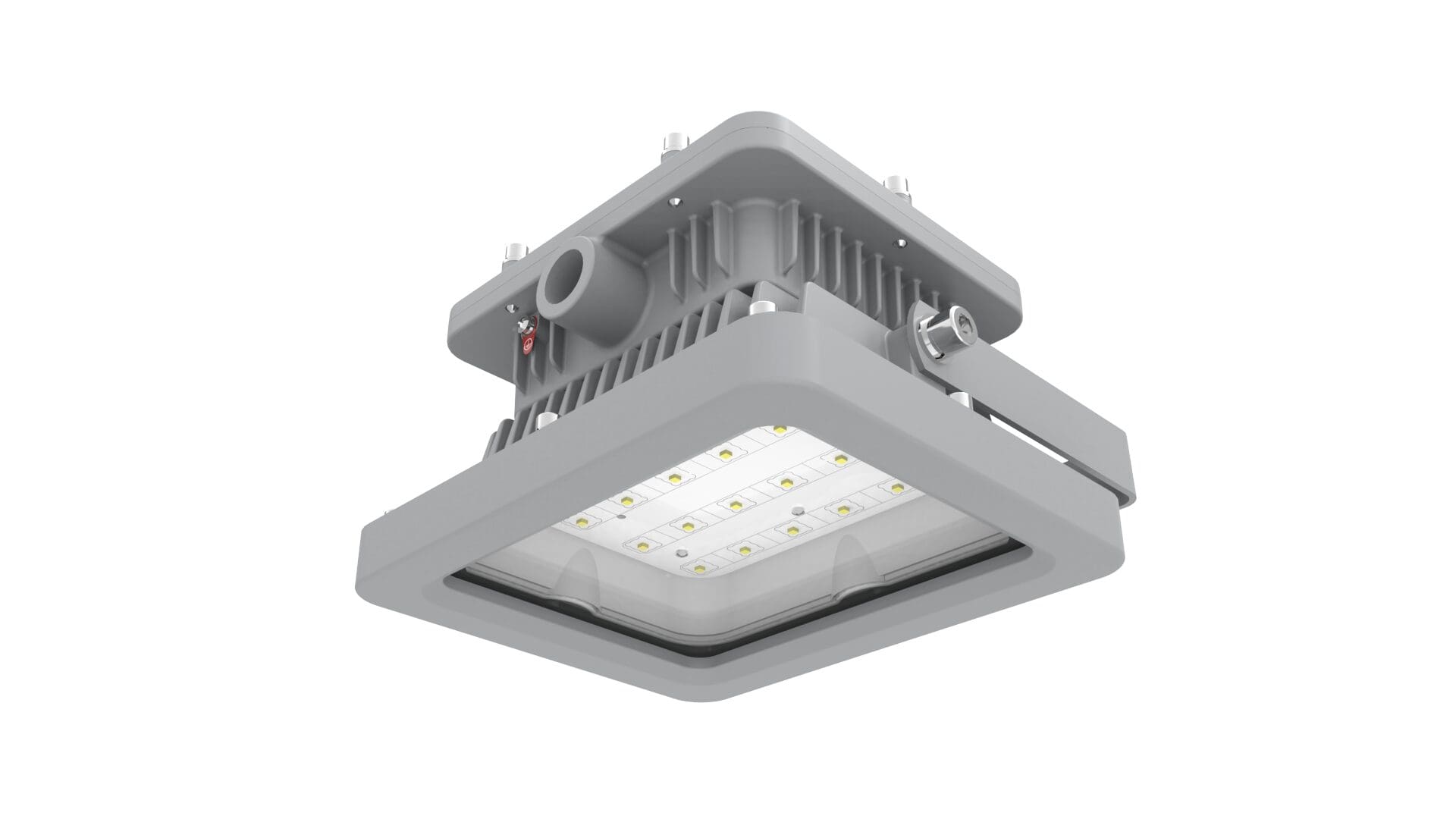

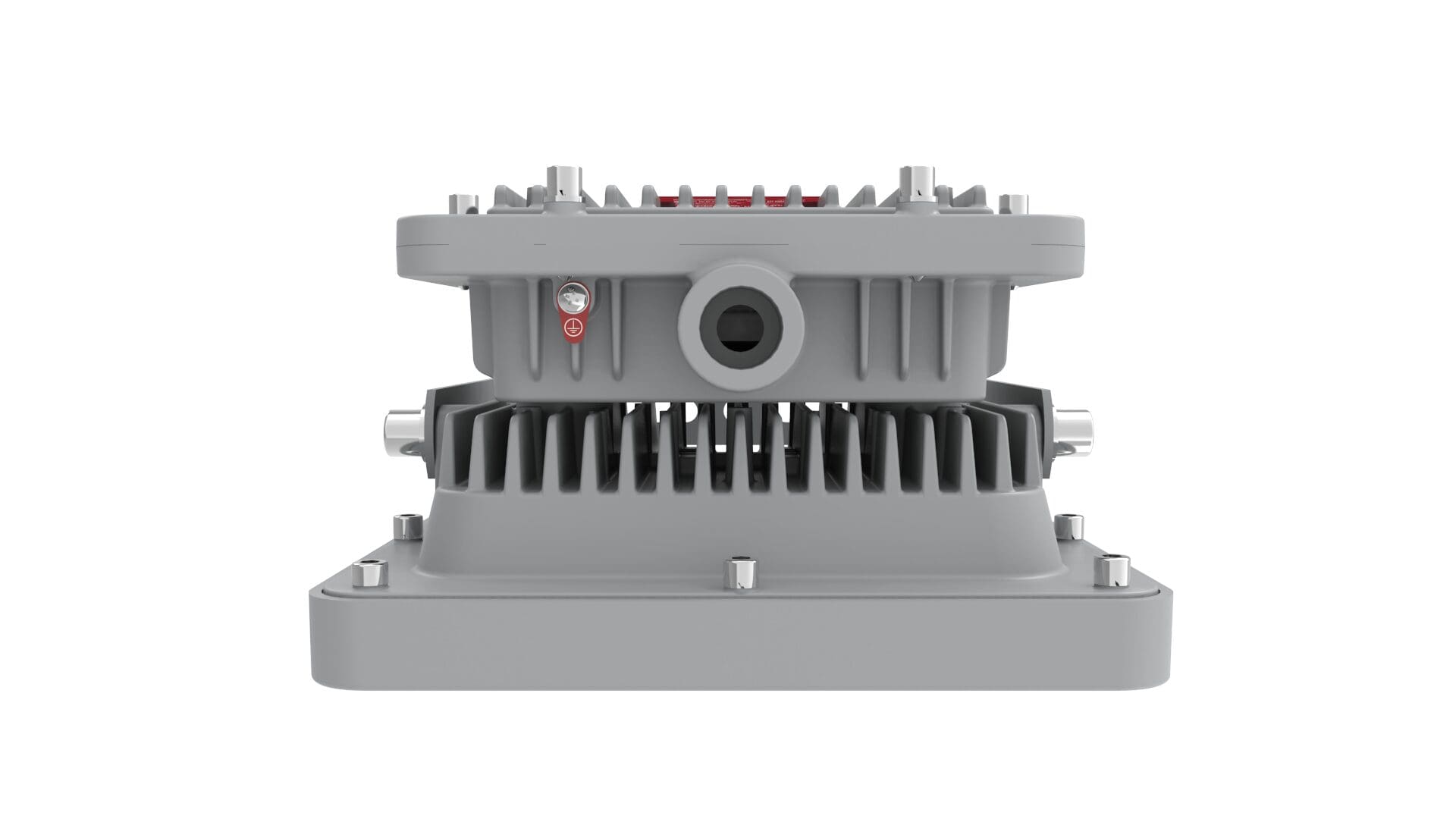

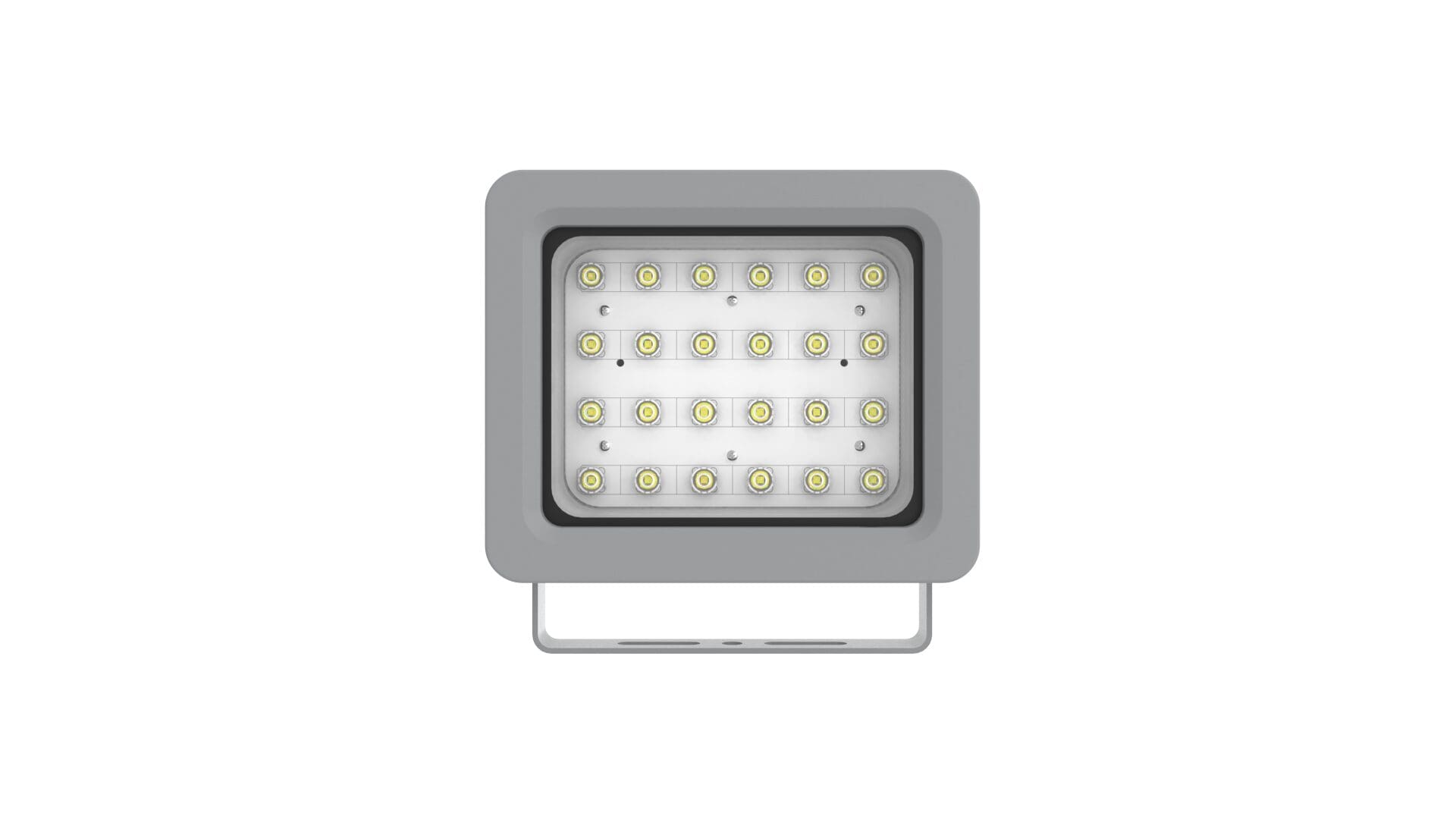

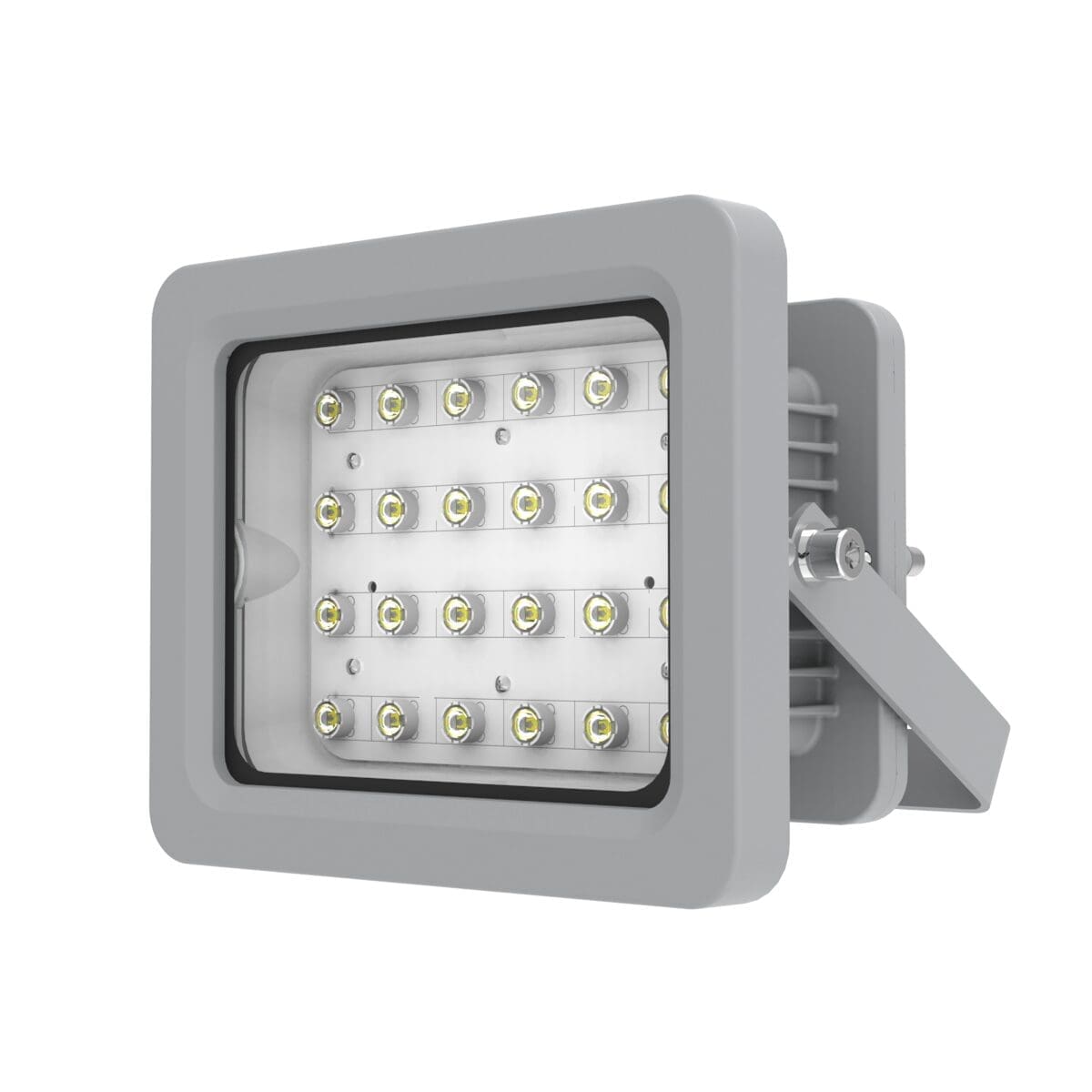

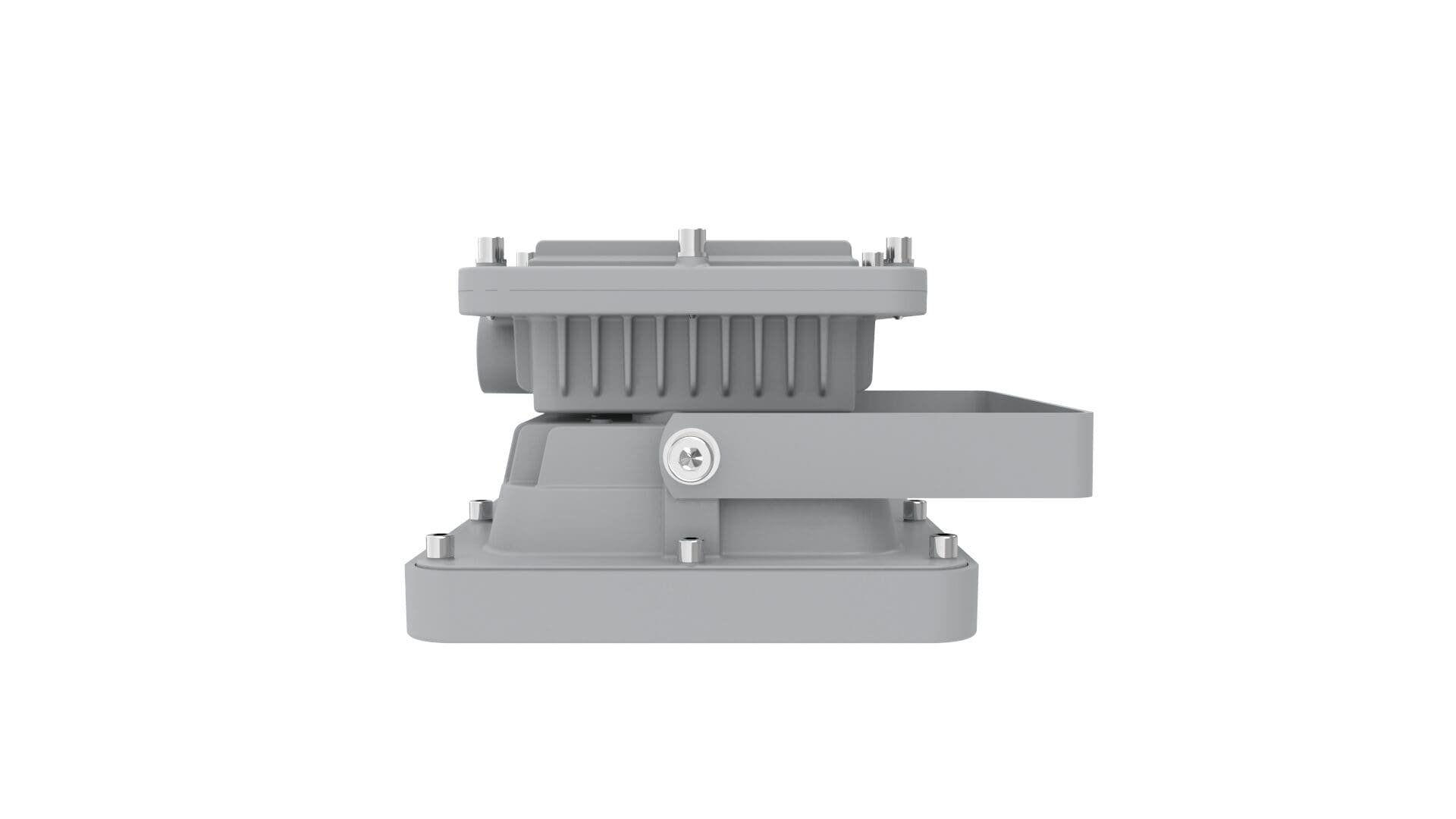

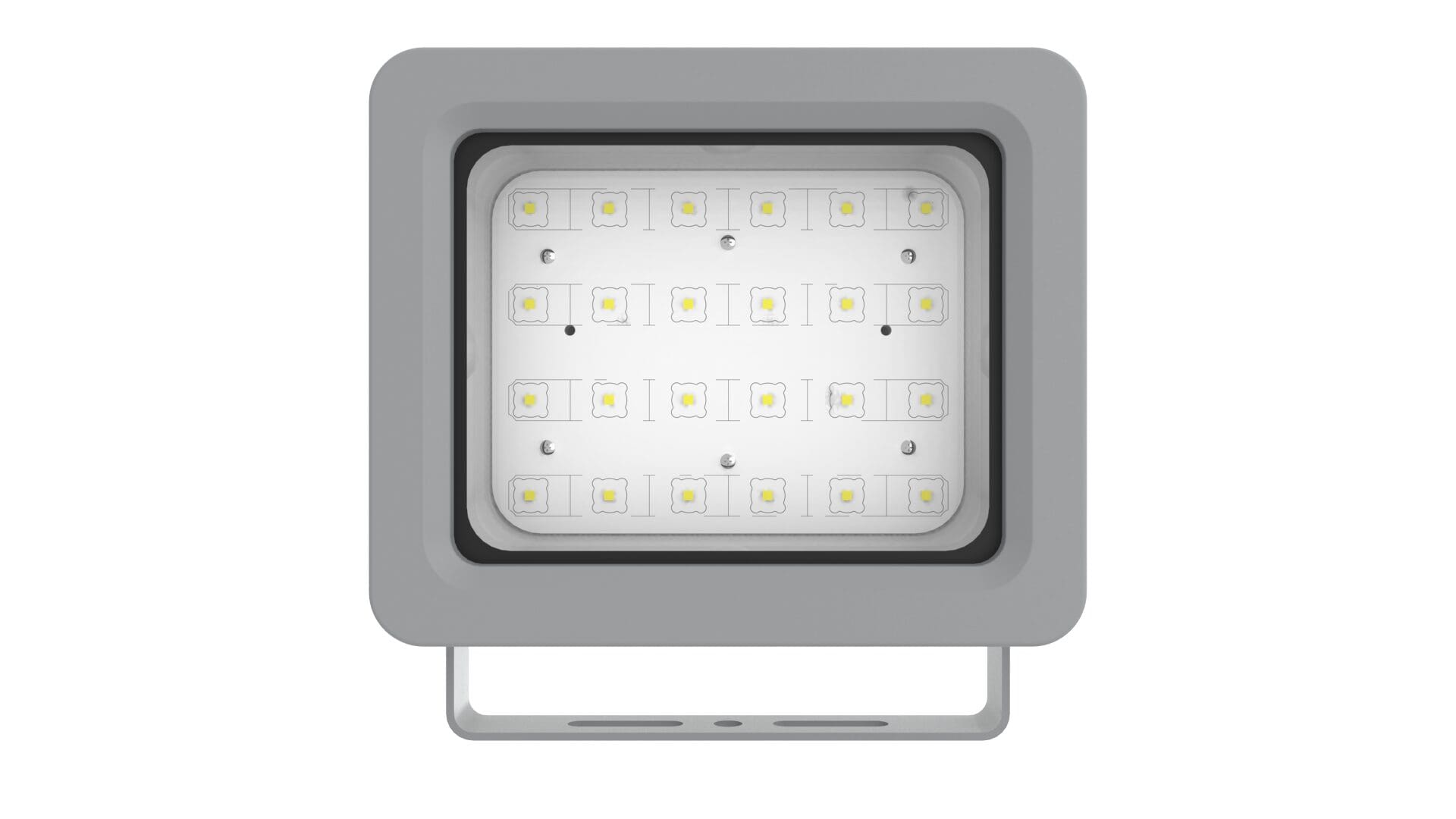

Block Series X1
SKU BLK X1
Description:
ATEX certified
Product Type & Application: Marine Transportation and logistics, Area & Floodlight, Oil and gas, Power Generation, Water, Wastewater Treatment
Specs
Compliance
Download
Electrical Parameters
Power (W)
20W, 40W, 60W, 80W,
100W, 120W, 150W
VOLTAGE(V)
100-240V AC
Frequency
50/60Hz
Power Factor
≥0.90
THD
<20%
L70
20/40/60W: 440,000 hrs@50°C
80/100/120/150W: 450,000 hrs@50°C
Surge Protection
20/40/60W : L/N-FG 2KV, L-N 1KV
80/100/120/150W : L/N-FG 4KV, L-N 2KV
Warranty
5 Years
Optical Parameters
Lumen Output
2,399Lm, 4,260Lm, 5,944Lm, 8,815Lm, 10,733Lm, 15,807Lm, 18,863Lm
Lumen Efficacy
20/40/60W: 120Lm/W
80/100/120/150W: 130Lm/W
Available Beam Angle
25° / 60° / 120°
Correlated Color Temperature (CCT)
4000K/5700K
Color Rendering Index (CRI)
Ra>70
Mechanical Parameters
Hardware
Stainless steel 316
Lens Material
Tempered Glass
Mounting Options
Yoke, Stanchion
Product Weight
20/40/60W: 10.1lbs/4.6kg
80/100/120/150W: 33.3lbs/15.1kg
Cable Entry
20/40/60W:
(1) 3/4″ NPT
80/100/120/150W:
(2) 3/4″ NPT
Product Dimensions(L×W×H)
20/40/60W: 9.6×8×5.6in (243×203×141mm)
80/100/120/150W: 13.2×11×6.6in (336×279×168mm)
Environmental Parameters
Ambient Operating Temperature
-30°C ~ +50°C
T-Code Ratin
Gas – T5, Dust – 95°C
