Junction Box
SKU Junction Box
Description:

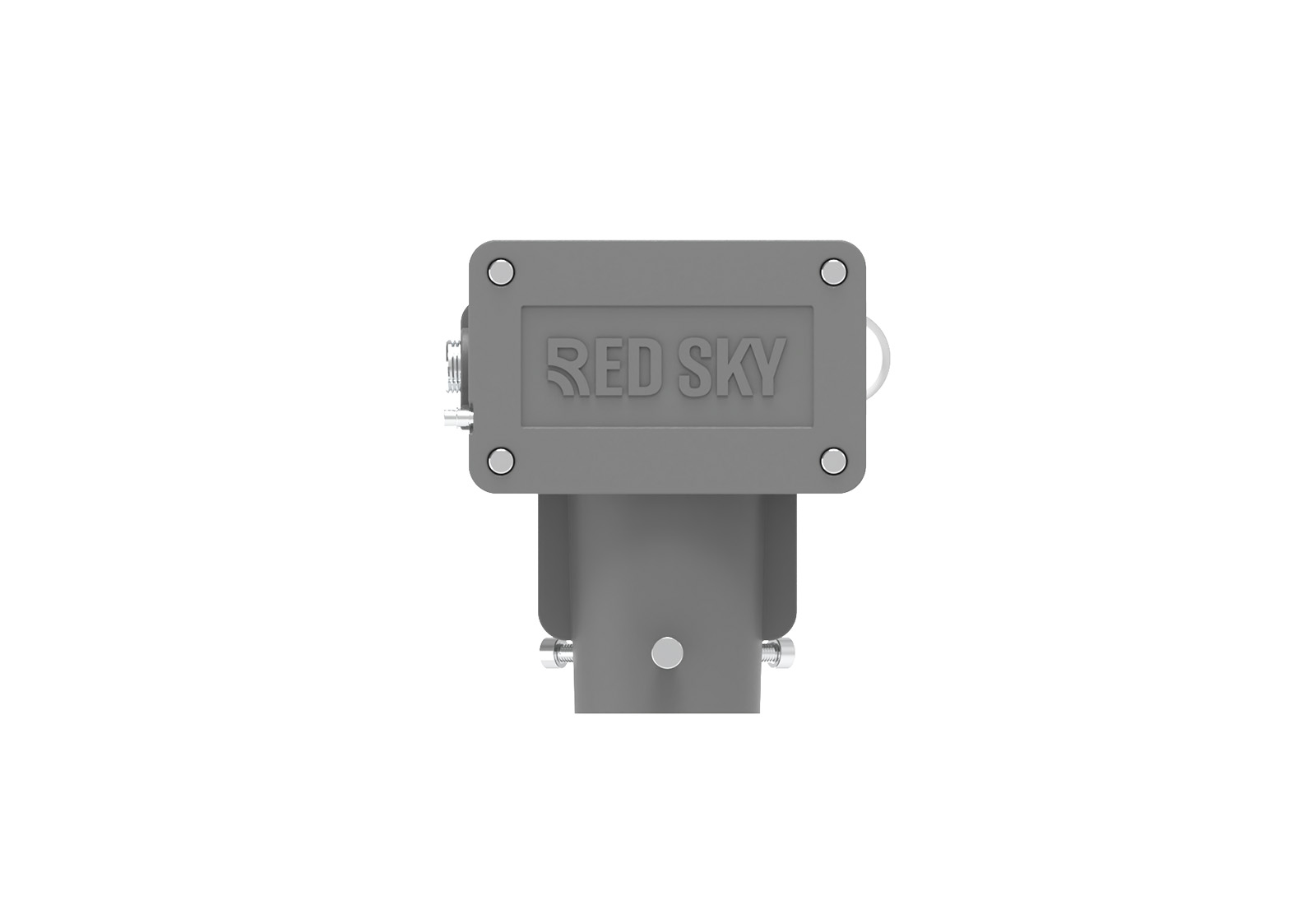

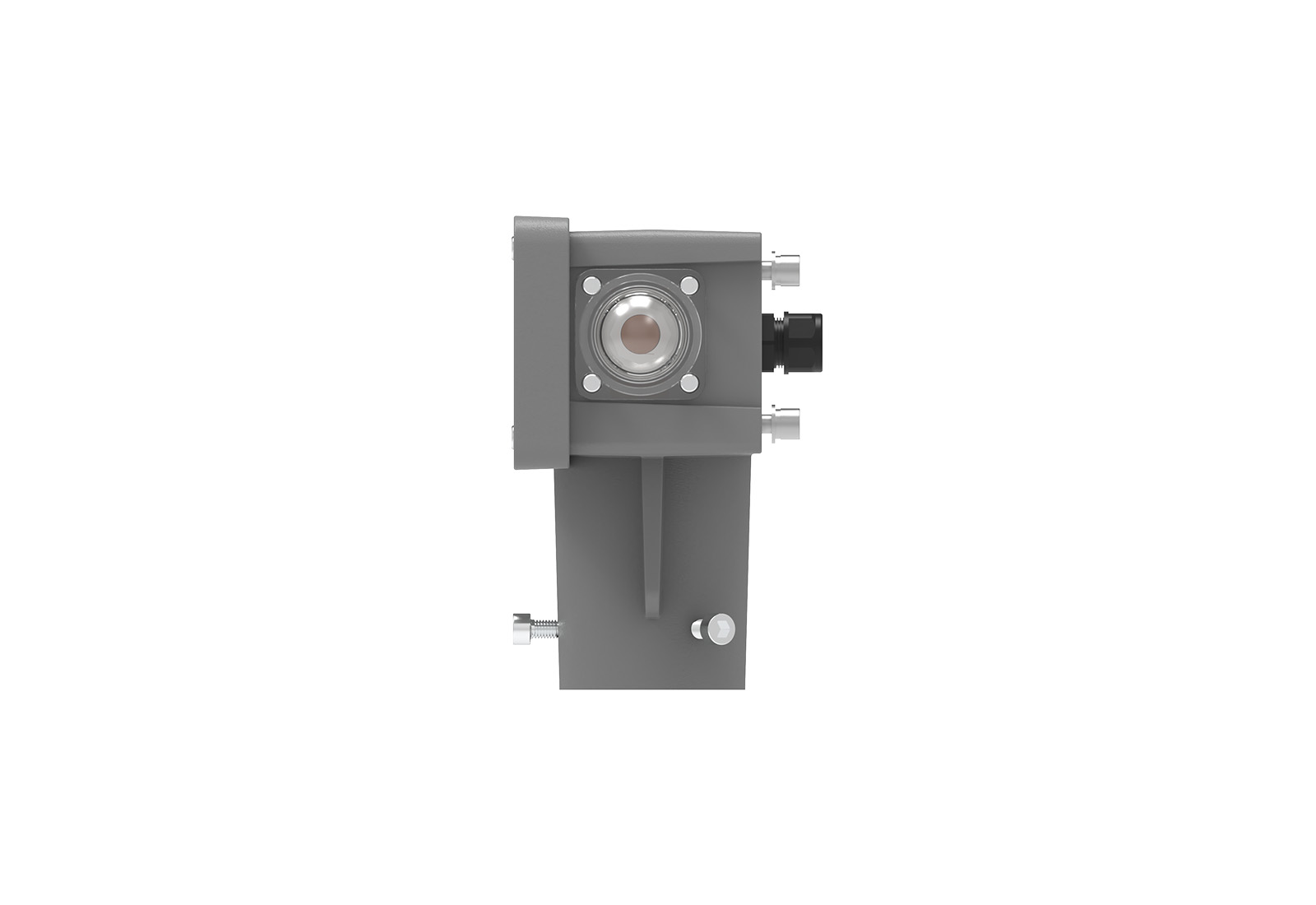

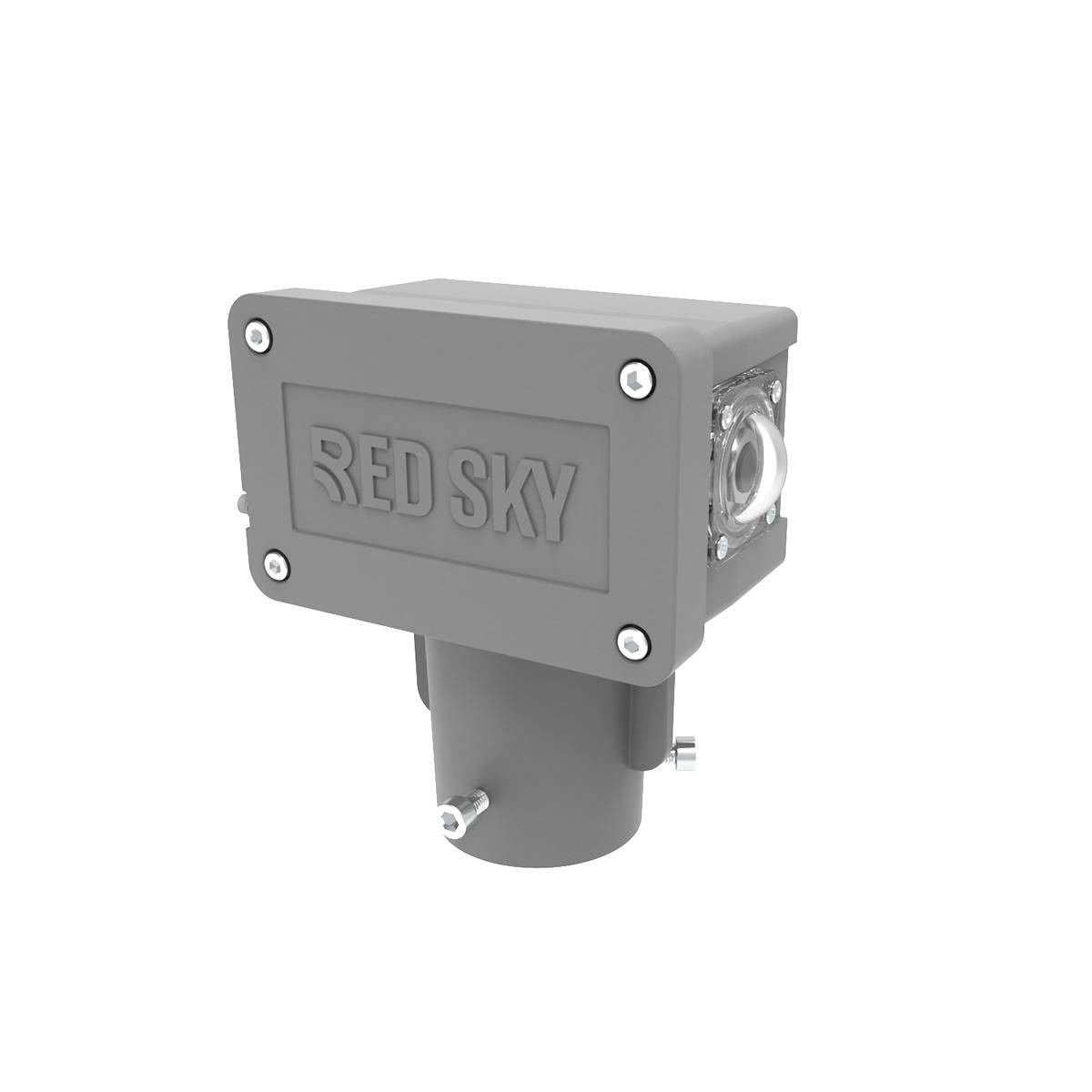

Junction Box is constructed as a multi-piece assembly consisting of a cast-aluminum copper free housing and front cover and cable gland. Design is to accommodate either Stanchion installation or other optional methods and used on 2”(2 3/8” OD) and 1.5” (1.9”OD) Poles ( NPT-threaded and without ).
Product Type & Application: Junction Box
SPECS
COMPLIANCE
DOWNLOAD
Material
LM6
Cable entry
1xNPT3/4, 1xNPT1/2
product weight
5.7lbs（2.6kg）
product dimensions(l×w×h)
7.24x4.04x7.68 in (184x103x195mm)
ambient operating temperature
-45°C ~ +65°C（Standard）
accommodated pole
1.9° 1.9° non-threaded pole,
2 3/8″ non-threaded pole ,
1.5″ NPT-threaded pole,
2″ NPT-threaded pole
